首頁 - SKF角接觸球軸承, 精密, S .. CD/HC, sealed, contact angle 15°, hybrid - SKF S7020CD/HCP4A軸承_進口軸承
S7020CD/HCP4A軸承，我司有部分庫存，您可致電銷售人員免費咨詢S7020CD/HCP4A軸承圖紙、價格、使用方法或同型號其他品牌替換等詳細資料！如果您對100mm×150mm×24mm S7020CD/HCP4A軸承有什么疑問，請聯系我們獲取更多信息。
CRBS708VUU軸承 CRBS708V軸承 CRBS708AUU軸承 CRBS708軸承
CRBS708VUU軸承 CRBS708V軸承 CRBS708AUU軸承 CRBS708軸承
SKFS7020CD/HCP4A軸承_進口軸承
| 角接觸球軸承, 精密, S .. CD/HC, sealed, contact angle 15°, hybrid | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 100 | 150 | 24 | 83,2 | 85 | 3,2 | 9500 | - | 1,05 | S7020 CD/HCP4A | - | |
推薦產品
我公司特價供應以下型號產品： 7309A軸承 18337軸承 170KBE02軸承 NF321軸承 47T785135B軸承 NUP2330軸承 354A軸承 51201軸承 6810ZZ軸承 GBR263520UU軸承 HR31316J軸承 7319BDF軸承 7822CDB軸承 CR18VUUR軸承 NJ208軸承
我公司特價供應以下型號產品： 7309A軸承 18337軸承 170KBE02軸承 NF321軸承 47T785135B軸承 NUP2330軸承 354A軸承 51201軸承 6810ZZ軸承 GBR263520UU軸承 HR31316J軸承 7319BDF軸承 7822CDB軸承 CR18VUUR軸承 NJ208軸承

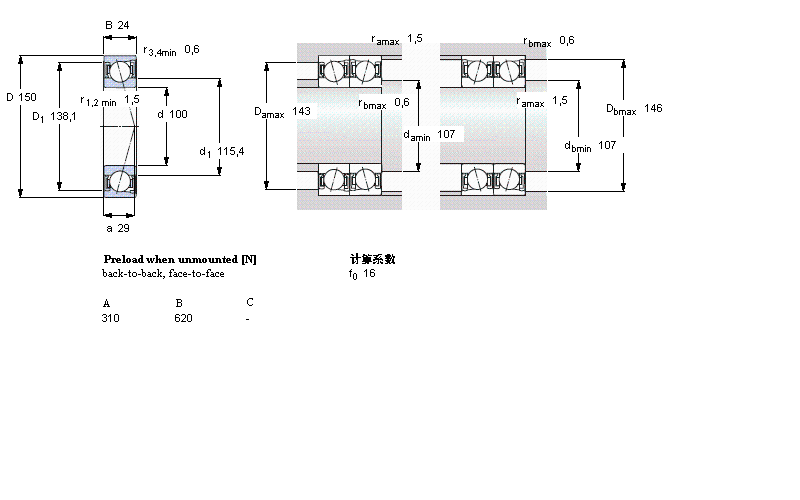

SKF軸承S7020CD/HCP4A樣本圖
