FBSA210/DF軸承，我司有部分庫存，您可致電銷售人員免費咨詢FBSA210/DF軸承圖紙、價格、使用方法或同型號其他品牌替換等詳細資料！如果您對50mm×124mm×66mm FBSA210/DF軸承有什么疑問，請聯系我們獲取更多信息。
SKFFBSA210/DF軸承_進口軸承
| 角接觸推力球軸承 for screw drives, cartridge units with flanged housing | |||||||||||
| 公差, inner rings, outer rings, see also text | |||||||||||
| Preload, see specific bearing, see also text | |||||||||||
| Shaft fits, housing fits | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 預壓 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 50 | 124 | 66 | 46,5 | 146 | 5,4 | 4800 | 2400 | 5,7 | FBSA 210/ DF | BSDU 250 FF | |
推薦產品
我公司特價供應以下型號產品： BL306Z軸承 7028DF軸承 NNU4956K軸承 E32207J軸承 IRB1812軸承 7307CDB軸承 AH2244軸承 CF18BUUR軸承 E-EE171000D/1..軸承
我公司特價供應以下型號產品： BL306Z軸承 7028DF軸承 NNU4956K軸承 E32207J軸承 IRB1812軸承 7307CDB軸承 AH2244軸承 CF18BUUR軸承 E-EE171000D/1..軸承

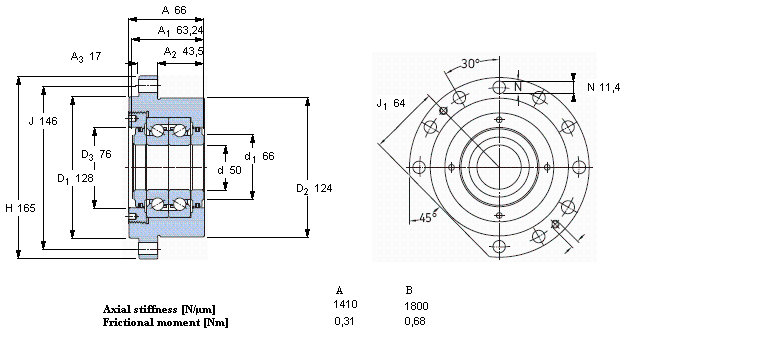

SKF軸承FBSA210/DF樣本圖
