BEAM040115-2Z軸承，我司有部分庫存，您可致電銷售人員免費咨詢BEAM040115-2Z軸承圖紙、價格、使用方法或同型號其他品牌替換等詳細資料！如果您對40mm×115mm×46mm BEAM040115-2Z軸承有什么疑問，請聯系我們獲取更多信息。
SKFBEAM040115-2Z軸承_進口軸承
| 角接觸推力球軸承 for screw drives, double direction, for bolt mounting | ||||||||||
| 公差, inner rings, outer rings, see also text | ||||||||||
| Preload, see specific bearing, see also text | ||||||||||
| Shaft fits, housing fits | ||||||||||
| 軸和軸承座公差 | ||||||||||
|
||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | Attainable speed | 體積 | 型號 | |||||
| 動態 | 靜態 | SKF | SNFA | |||||||
| d | D | H | C | C0 | Pu | |||||
|
|
||||||||||
| mm | kN | kN | r/min | kg | - | |||||
|
|
||||||||||
| 40 | 115 | 46 | 71,5 | 150 | 5,5 | 3000 | 2,20 | BEAM 040115-2Z | BEAM 40/115/Z 7P60 | |
推薦產品
我公司特價供應以下型號產品： NUP2332EM軸承 24034RH軸承 7338軸承 29284E軸承 4T-24780/2472..軸承 7956DB軸承 F636軸承 HJ2316軸承 YT1725軸承
我公司特價供應以下型號產品： NUP2332EM軸承 24034RH軸承 7338軸承 29284E軸承 4T-24780/2472..軸承 7956DB軸承 F636軸承 HJ2316軸承 YT1725軸承

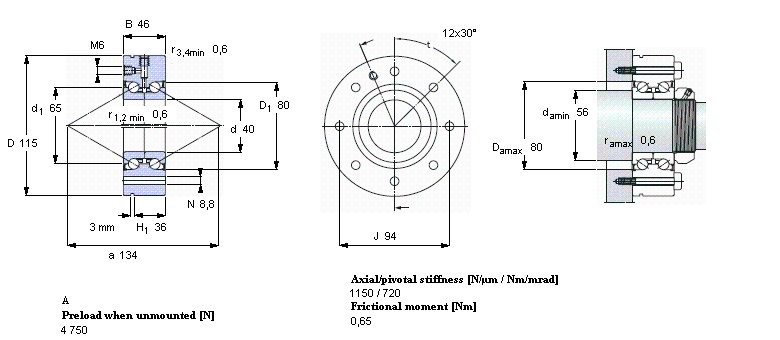

SKF軸承BEAM040115-2Z樣本圖
