BEAM030100-2RS軸承，我司有部分庫存，您可致電銷售人員免費咨詢BEAM030100-2RS軸承圖紙、價格、使用方法或同型號其他品牌替換等詳細資料！如果您對30mm×100mm×38mm BEAM030100-2RS軸承有什么疑問，請聯系我們獲取更多信息。
SKFBEAM030100-2RS軸承_進口軸承
| 角接觸推力球軸承 for screw drives, double direction, for bolt mounting | ||||||||||
| 公差, inner rings, outer rings, see also text | ||||||||||
| Preload, see specific bearing, see also text | ||||||||||
| Shaft fits, housing fits | ||||||||||
| 軸和軸承座公差 | ||||||||||
|
||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | Attainable speed | 體積 | 型號 | |||||
| 動態 | 靜態 | SKF | SNFA | |||||||
| d | D | H | C | C0 | Pu | |||||
|
|
||||||||||
| mm | kN | kN | r/min | kg | - | |||||
|
|
||||||||||
| 30 | 100 | 38 | 60 | 108 | 4 | 2600 | 1,65 | BEAM 030100-2RS | BEAM 30/100/C 7P60 | |
推薦產品
我公司特價供應以下型號產品： 6088軸承 2788軸承 16016軸承 E-CRO-8806軸承 639軸承 7303CDF軸承 7312BDB軸承 53202軸承 7210DB軸承 SN214C軸承 4TR550C軸承 TAM7030軸承
我公司特價供應以下型號產品： 6088軸承 2788軸承 16016軸承 E-CRO-8806軸承 639軸承 7303CDF軸承 7312BDB軸承 53202軸承 7210DB軸承 SN214C軸承 4TR550C軸承 TAM7030軸承

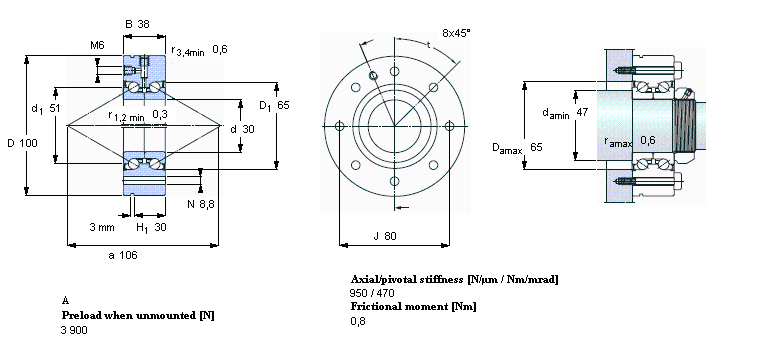

SKF軸承BEAM030100-2RS樣本圖
