首頁 - SKF角接觸推力球軸承 for screw drives, double direction, for bolt mounting - SKF BEAM025075-2RS/PE軸承_進口軸承
BEAM025075-2RS/PE軸承，我司有部分庫存，您可致電銷售人員免費咨詢BEAM025075-2RS/PE軸承圖紙、價格、使用方法或同型號其他品牌替換等詳細資料！如果您對25mm×75mm×28mm BEAM025075-2RS/PE軸承有什么疑問，請聯系我們獲取更多信息。
SKFBEAM025075-2RS/PE軸承_進口軸承
| 角接觸推力球軸承 for screw drives, double direction, for bolt mounting | ||||||||||
| 公差, inner rings, outer rings, see also text | ||||||||||
| Preload, see specific bearing, see also text | ||||||||||
| Shaft fits, housing fits | ||||||||||
| 軸和軸承座公差 | ||||||||||
|
||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | Attainable speed | 體積 | 型號 | |||||
| 動態 | 靜態 | SKF | SNFA | |||||||
| d | D | H | C | C0 | Pu | |||||
|
|
||||||||||
| mm | kN | kN | r/min | kg | - | |||||
|
|
||||||||||
| 25 | 75 | 28 | 27,6 | 55 | 2,04 | 3400 | 0,72 | BEAM 025075-2RS/PE | BEAM 25/75/C SQP60 | |
推薦產品
我公司特價供應以下型號產品： 7317B軸承 6213軸承 24080B軸承 30FC20120軸承 HM88610軸承 323048E1軸承 323144軸承 623ZZA軸承 6905-2NSE軸承 CRH48VBUU軸承 BR182620UU軸承 6318軸承
我公司特價供應以下型號產品： 7317B軸承 6213軸承 24080B軸承 30FC20120軸承 HM88610軸承 323048E1軸承 323144軸承 623ZZA軸承 6905-2NSE軸承 CRH48VBUU軸承 BR182620UU軸承 6318軸承

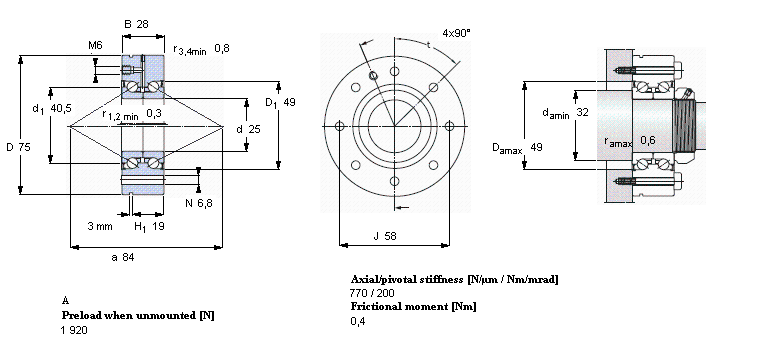

SKF軸承BEAM025075-2RS/PE樣本圖
