BEAM012055-2RS軸承，我司有部分庫存，您可致電銷售人員免費咨詢BEAM012055-2RS軸承圖紙、價格、使用方法或同型號其他品牌替換等詳細資料！如果您對12mm×55mm×25mm BEAM012055-2RS軸承有什么疑問，請聯系我們獲取更多信息。
SKFBEAM012055-2RS軸承_進口軸承
| 角接觸推力球軸承 for screw drives, double direction, for bolt mounting | ||||||||||
| 公差, inner rings, outer rings, see also text | ||||||||||
| Preload, see specific bearing, see also text | ||||||||||
| Shaft fits, housing fits | ||||||||||
| 軸和軸承座公差 | ||||||||||
|
||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | Attainable speed | 體積 | 型號 | |||||
| 動態 | 靜態 | SKF | SNFA | |||||||
| d | D | H | C | C0 | Pu | |||||
|
|
||||||||||
| mm | kN | kN | r/min | kg | - | |||||
|
|
||||||||||
| 12 | 55 | 25 | 16,8 | 24,5 | 0,915 | 4000 | 0,37 | BEAM 012055-2RS | BEAM 12/55/C 7P60 | |
推薦產品
我公司特價供應以下型號產品： CF8FBR軸承 F602ZZ軸承 29415E軸承 CR28B軸承 232/560CAKE4軸承 BL213zz軸承 LRB404828軸承 FLBC4-10軸承 RNA4922軸承 6907ZENR軸承 YB810軸承
我公司特價供應以下型號產品： CF8FBR軸承 F602ZZ軸承 29415E軸承 CR28B軸承 232/560CAKE4軸承 BL213zz軸承 LRB404828軸承 FLBC4-10軸承 RNA4922軸承 6907ZENR軸承 YB810軸承

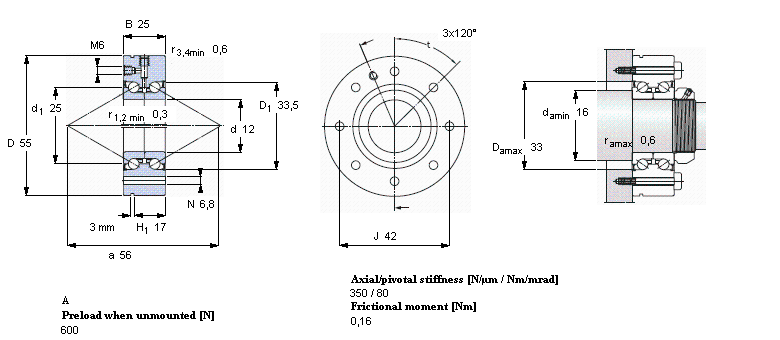

SKF軸承BEAM012055-2RS樣本圖
