7205ACD/HCP4A軸承，我司有部分庫存，您可致電銷售人員免費咨詢7205ACD/HCP4A軸承圖紙、價格、使用方法或同型號其他品牌替換等詳細資料！如果您對25mm×52mm×15mm 7205ACD/HCP4A軸承有什么疑問，請聯系我們獲取更多信息。
7206BDF軸承 7202DT軸承 4T-07100/07204軸承 GBR283720UU軸承 7202B軸承 7206CDF軸承 7206CDB軸承 7206C軸承 7205c軸承 7207DB軸承
7206BDF軸承 7202DT軸承 4T-07100/07204軸承 GBR283720UU軸承 7202B軸承 7206CDF軸承 7206CDB軸承 7206C軸承 7205c軸承 7207DB軸承
SKF7205ACD/HCP4A軸承_進口軸承
| 角接觸球軸承, 精密, ACD/HC, contact angle 25°, hybrid | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 25 | 52 | 15 | 13 | 6,95 | 0,29 | 32000 | 48000 | 0,12 | 7205 ACD/HCP4A | - | |
推薦產品
我公司特價供應以下型號產品： HJ2218軸承 NURT20-1R軸承 7834CDB軸承 BR648032軸承 5304BZZ軸承 6010軸承 BHAM168軸承 820RV1132軸承 423156軸承 7913軸承 CF18VBR軸承 BAM4410軸承 6017VV軸承 6221NR軸承
我公司特價供應以下型號產品： HJ2218軸承 NURT20-1R軸承 7834CDB軸承 BR648032軸承 5304BZZ軸承 6010軸承 BHAM168軸承 820RV1132軸承 423156軸承 7913軸承 CF18VBR軸承 BAM4410軸承 6017VV軸承 6221NR軸承

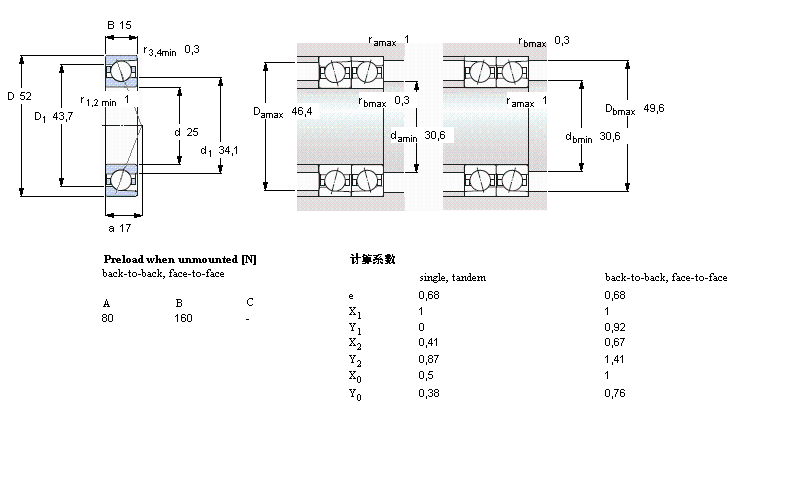

SKF軸承7205ACD/HCP4A樣本圖
