7200ACD/P4A軸承，我司有部分庫存，您可致電銷售人員免費咨詢7200ACD/P4A軸承圖紙、價格、使用方法或同型號其他品牌替換等詳細資料！如果您對10mm×30mm×9mm 7200ACD/P4A軸承有什么疑問，請聯系我們獲取更多信息。
7203DF軸承 4T-18790/18720軸承 LRT323720軸承 3782/3720軸承 7202B軸承 7204軸承 7209BDT軸承 7203C軸承 7200BDB軸承 7206A軸承
7203DF軸承 4T-18790/18720軸承 LRT323720軸承 3782/3720軸承 7202B軸承 7204軸承 7209BDT軸承 7203C軸承 7200BDB軸承 7206A軸承
SKF7200ACD/P4A軸承_進口軸承
| 角接觸球軸承, 精密, ACD, contact angle 25° | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 10 | 30 | 9 | 5,2 | 2,45 | 0,09 | 53000 | 80000 | 0,029 | 7200 ACD/P4A | - | |
推薦產品
我公司特價供應以下型號產品： 2585軸承 30312DJR軸承 FLW683ZZA軸承 M284249D/210/..軸承 23184RK+H3184軸承 ML1204軸承 LRBZ324028軸承 KT101310軸承 6215ZZ軸承 6316N軸承 UCF210-115D1軸承 6009N軸承
我公司特價供應以下型號產品： 2585軸承 30312DJR軸承 FLW683ZZA軸承 M284249D/210/..軸承 23184RK+H3184軸承 ML1204軸承 LRBZ324028軸承 KT101310軸承 6215ZZ軸承 6316N軸承 UCF210-115D1軸承 6009N軸承

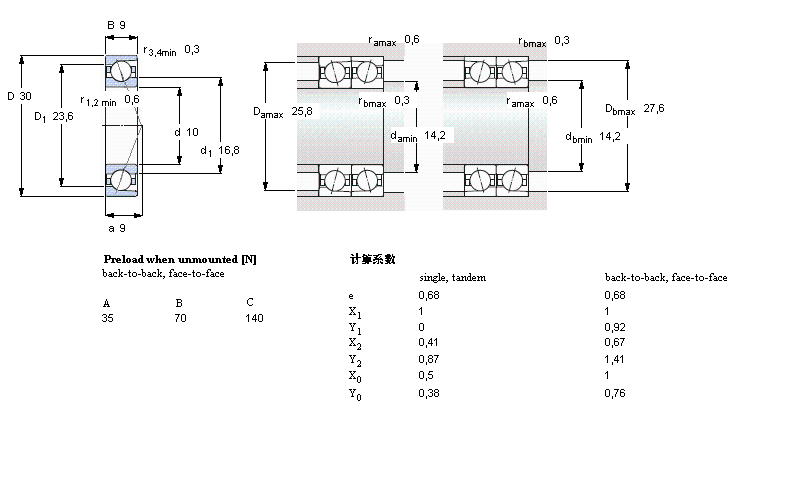

SKF軸承7200ACD/P4A樣本圖
