71822CD/HCP4A軸承，我司有部分庫存，您可致電銷售人員免費咨詢71822CD/HCP4A軸承圖紙、價格、使用方法或同型號其他品牌替換等詳細資料！如果您對110mm×140mm×16mm 71822CD/HCP4A軸承有什么疑問，請聯系我們獲取更多信息。
JM718110軸承 JM718149/10軸承 4T-JM718149/JM718110軸承 47T271816軸承 JM718149軸承 36FC27180軸承
JM718110軸承 JM718149/10軸承 4T-JM718149/JM718110軸承 47T271816軸承 JM718149軸承 36FC27180軸承
SKF71822CD/HCP4A軸承_進口軸承
| 角接觸球軸承, 精密, CD, contact angle 15°, hybrid, super-precision | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 110 | 140 | 16 | 31,9 | 40,5 | 1,53 | 10000 | 15000 | 0,453 | 71822 CD/HCP4A | SEA110 /NS 7CE1 | |
推薦產品
我公司特價供應以下型號產品： NJ2244軸承 NN30/500軸承 NP309軸承 46222軸承 N1016軸承 LRT222620軸承 323028軸承 NP344軸承 232/670CAE4軸承 22082RS軸承
我公司特價供應以下型號產品： NJ2244軸承 NN30/500軸承 NP309軸承 46222軸承 N1016軸承 LRT222620軸承 323028軸承 NP344軸承 232/670CAE4軸承 22082RS軸承

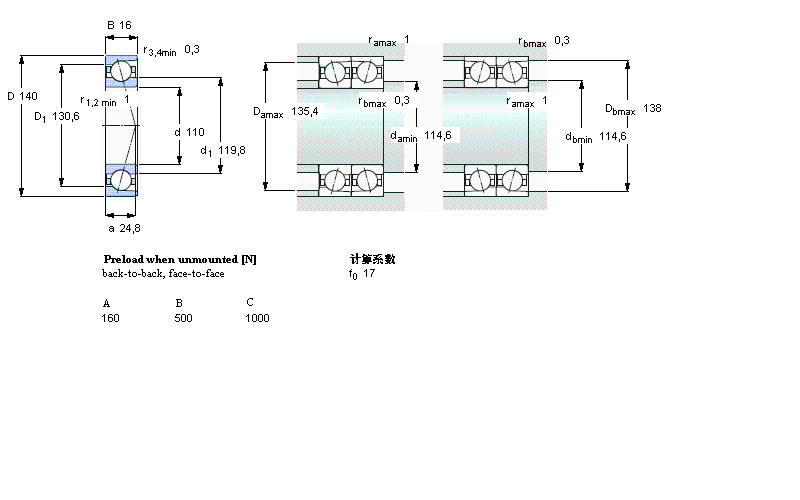

SKF軸承71822CD/HCP4A樣本圖
