71801ACD/HCP4軸承，我司有部分庫存，您可致電銷售人員免費咨詢71801ACD/HCP4軸承圖紙、價格、使用方法或同型號其他品牌替換等詳細資料！如果您對12mm×21mm×5mm 71801ACD/HCP4軸承有什么疑問，請聯系我們獲取更多信息。
36FC27180軸承 4T-JM718149/JM718110軸承 JM718149軸承 47T271816軸承 JM718149/10軸承 JM718110軸承
36FC27180軸承 4T-JM718149/JM718110軸承 JM718149軸承 47T271816軸承 JM718149/10軸承 JM718110軸承
SKF71801ACD/HCP4軸承_進口軸承
| 角接觸球軸承, 精密, ACD, contact angle 25°, hybrid, super-precision | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 12 | 21 | 5 | 1,95 | 1,12 | 0,048 | 75000 | 110000 | 0,006 | 71801 ACD/HCP4 | SEA12 /NS 7CE3 | |
推薦產品
我公司特價供應以下型號產品： W679ZZA軸承 7214C軸承 52393/618軸承 7230B軸承 54222軸承
我公司特價供應以下型號產品： W679ZZA軸承 7214C軸承 52393/618軸承 7230B軸承 54222軸承

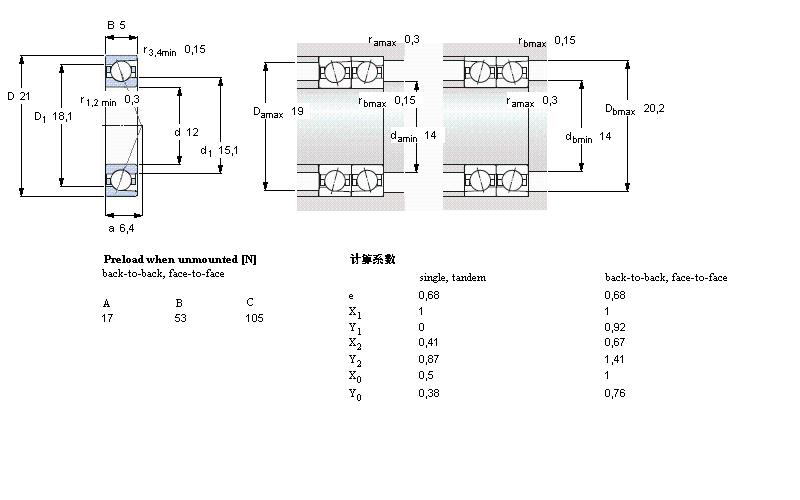

SKF軸承71801ACD/HCP4樣本圖
