7017ACE/HCP4A軸承，我司有部分庫存，您可致電銷售人員免費咨詢7017ACE/HCP4A軸承圖紙、價格、使用方法或同型號其他品牌替換等詳細資料！如果您對85mm×130mm×22mm 7017ACE/HCP4A軸承有什么疑問，請聯系我們獲取更多信息。
7013軸承 7014CDT軸承 4T-HM617049/HM617010軸承 7010DT軸承 7011ADF軸承 7016CDF軸承 7018DT軸承 7010CDB軸承 7015CDB軸承 7012CDF軸承
7013軸承 7014CDT軸承 4T-HM617049/HM617010軸承 7010DT軸承 7011ADF軸承 7016CDF軸承 7018DT軸承 7010CDB軸承 7015CDB軸承 7012CDF軸承
SKF7017ACE/HCP4A軸承_進口軸承
| 角接觸球軸承, 精密, ACE/HC, contact angle 25°, hybrid | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 85 | 130 | 22 | 28,1 | 21,6 | 0,88 | 14000 | 22000 | 0,81 | 7017 ACE/HCP4A | - | |
推薦產品
我公司特價供應以下型號產品： CF-RU1-6軸承 NBX2030軸承 54210U軸承 NATB5912軸承 TAM3220軸承 683軸承 6909LLU軸承 CRH40VR軸承 H2344軸承 6222VV軸承 31326XU軸承 TRU203820UU軸承
我公司特價供應以下型號產品： CF-RU1-6軸承 NBX2030軸承 54210U軸承 NATB5912軸承 TAM3220軸承 683軸承 6909LLU軸承 CRH40VR軸承 H2344軸承 6222VV軸承 31326XU軸承 TRU203820UU軸承

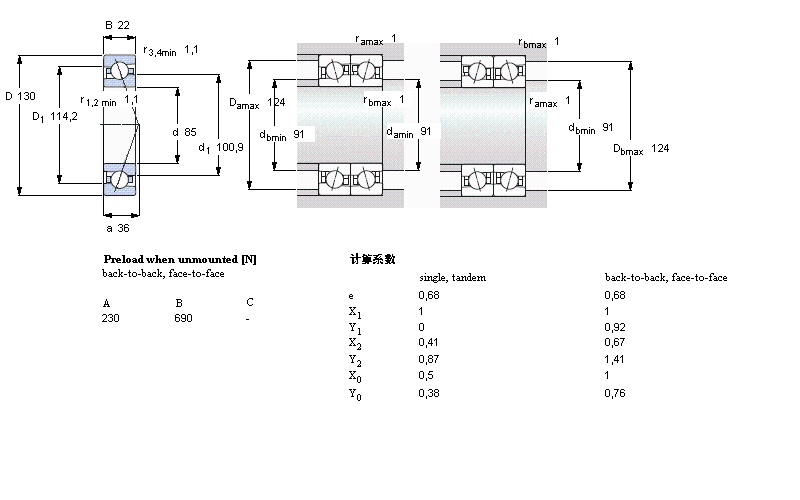

SKF軸承7017ACE/HCP4A樣本圖
